Home > Product guidance top > High-speed small-hole electric-discharge -machining unit 2Z080

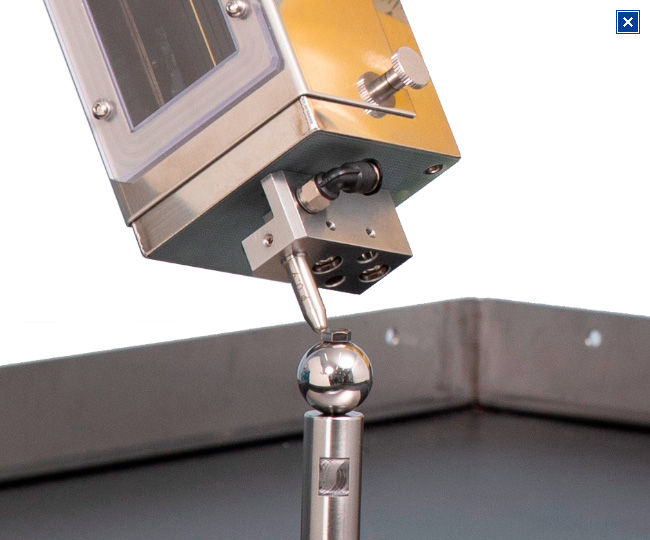

This unit can be installed in a robot, which enables making an in-line factory and machining multiple holes simultaneously.
Installing this unit in an unused machine can transform it into a small-hole EDM machine, which contributes to solving environmental issues.
| name | 2Z080 |
|---|---|

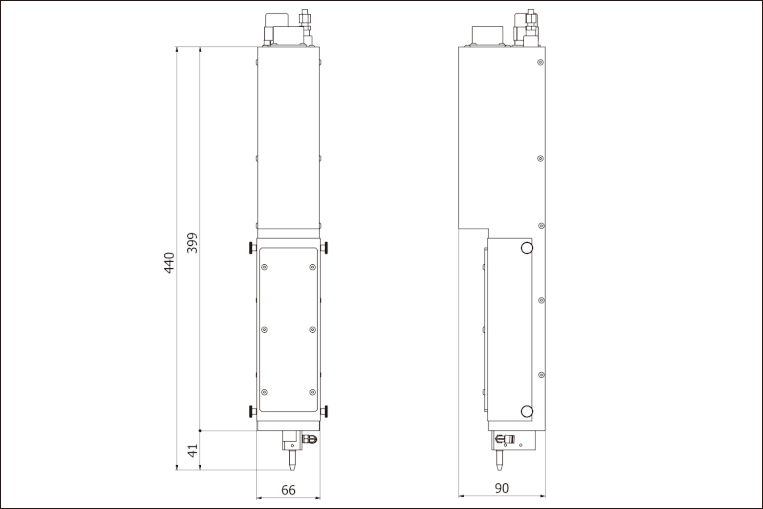

| Body dimensions (width × depth × height) | 66×90×440mm |
| Machine body weight | 3.2kg |
| Stroke | 80mm |
| Maximum electrode length | 150mm |
| Diameter of the electrodes | φ0.2～3.0mm |
| Customizable unit | Automatic electrode exchanger / Automatic guide exchanger |
