The best-selling A66CNC has been remodeled.
The minimum electrode diameter has been improved to φ0.1 mm to expand the machining application areas.
It is an almighty CNC machine for every user who wants just the right machine.
| name | A67CNC |
|---|---|

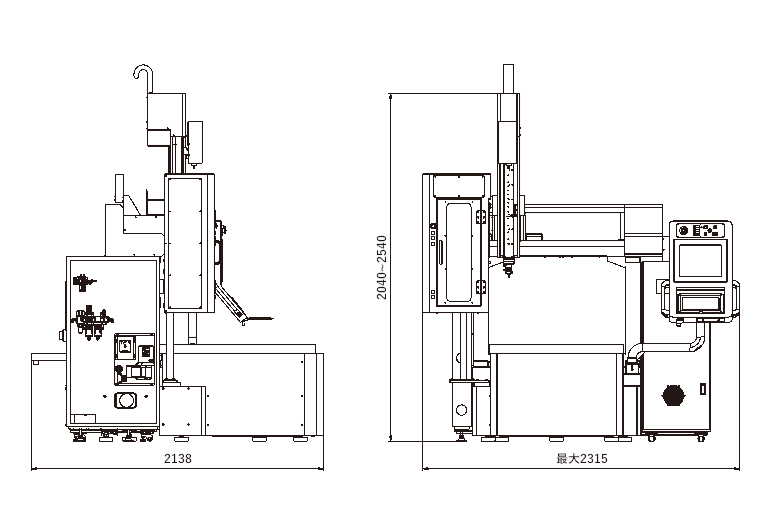

| Body dimensions (width × depth × height) | 2315×2138×2540mm |
| Machine body weight | 2600kgf |
| Table Travel(X-axis × Y-axis) | 600×700mm |
| Work maximun loading weight | 500kgf |
| Work maximum height | 500mm |
| W axis Head Travel | 500mm |
| Z axis Servo Travel | 700mm |
| Electrode | φ0.1～φ3.0mm |
| Automatic electrode exchange (Number of set electrodes) | standard 24 （Custom-made 48,96） |
| Automatic guide exchange (Number of set guides) | standard 8 |
