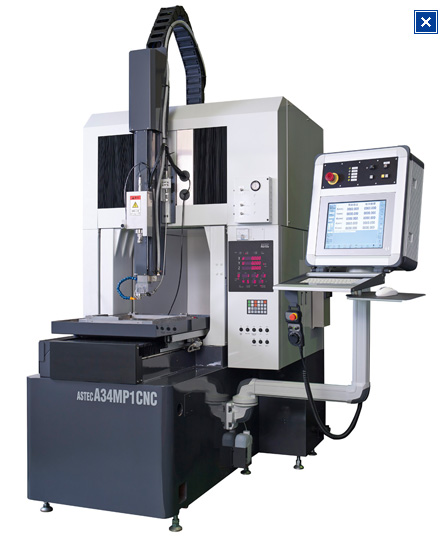

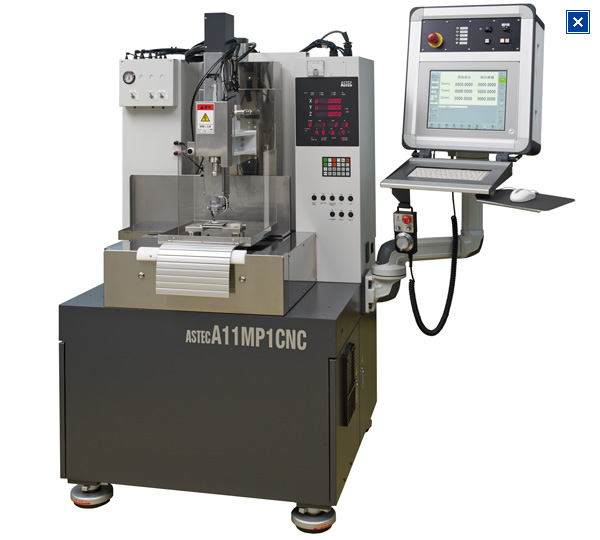

Home > Product guidance top > CNC high-speed micro-hole EDM : A11MP1CNC & A34MP1CNC

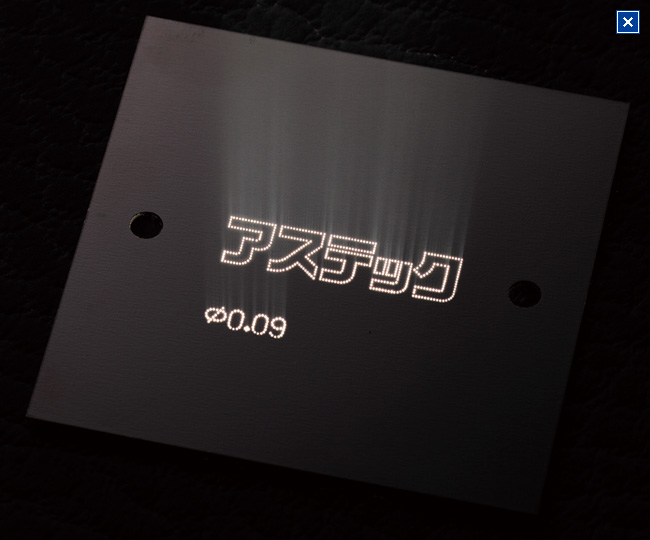

2770 micloholes, 4h21min continuous processing.
| name | A11MP1CNC | A34MP1CNC |
|---|---|---|
| Work Table (width x depth) |
200×120mm | 400×490mm |
| Work Tank (width x depth) |
327×362mm | 556×790mm |
| Table Travel (X-axis x Y-axis) |
100×100mm （X・Y axis Linear Motor drive） |
300×400mm |
| Repeat Accuracy | ±0.0005mm | ±0.0025mm |
| W axis Head Travel | 100mm | 300mm |
| Z axis Servo Travel | 250mm | 440mm |
| Electrode | φ0.05～φ0.2mm | |
| Automatic Electrade Supply function | Available | |
| NC Command | G code (CAD Date reading: DXF) | |
● Work Material：SKH2
● Work Thickness：0.5mm
● Electrode：φ0.046mmWC
● Electrode consumption：0.2mm
● Hole Size (entrance)：φ0.071mm
● Hole Size (exit)：φ0.071mm
● Machining Speed：15mm/min
